wei2912/SPHERE-VLM

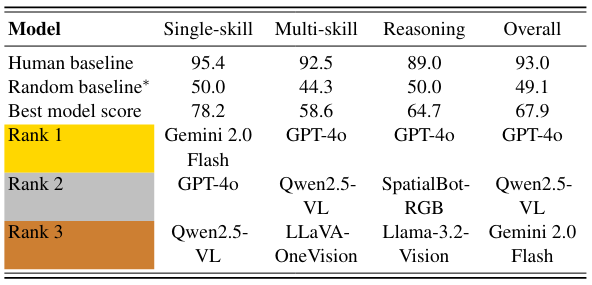

SPHERE (Spatial Perception and Hierarchical Evaluation of REasoning) is a benchmark for assessing spatial reasoning in vision-language models. It introduces a hierarchical evaluation framework with a human-annotated dataset, testing models on tasks ranging from basic spatial understanding to complex multi-skill reasoning. SPHERE poses significant challenges for both state-of-the-art open-source and proprietary models, revealing critical gaps in spatial cognition.

Project page: https://sphere-vlm.github.io/

Dataset Usage

To use this dataset, run the following:

from datasets import load_dataset

dataset = load_dataset("wei2912/SPHERE-VLM", "counting_only-paired-distance_and_counting")

where the second argument to load_dataset is the subset of your choice (see Dataset Structure).

Dataset Structure

The dataset is split into the following subsets:

Single-skill

1. Position (position_only) - 357 samples
   • Egocentric: 172, Allocentric: 185
2. Counting (counting_only-paired-distance_and_counting + counting_only-paired-position_and_counting) - 201 samples
   • The counting_only-paired-distance_and_counting subset comprises questions corresponding to those in distance_and_counting, and similarly for counting_only-paired-position_and_counting with position-and_counting.
   • For instance, every question in distance_and_counting (e.g. "How many crows are on the railing farther from the viewer?") has a corresponding question in counting_only-paired-distance_and_counting to count all such instances (e.g. "How many crows are in the photo?")
3. Distance (distance_only) - 202 samples
4. Size (size_only) - 198 samples

Multi-skill

1. Position + Counting (position_and_counting) - 169 samples
   • Egocentric: 64, Allocentric: 105
2. Distance + Counting (distance_and_counting) - 158 samples
3. Distance + Size (distance_and_size) - 199 samples

Reasoning

1. Object occlusion (object_occlusion) - 402 samples
   • Intermediate: 202, Final: 200
   • The object_occlusion_w_intermediate subset contains final questions with intermediate answers prefixed in the following format:

     "Given that for the question: <intermediate step question> The answer is: <intermediate step answer>. <final step question> Answer the question directly."

   • For instance, given the two questions "Which object is thicker?" (intermediate) and "Where can a child be hiding?" (final) in object_occlusion, the corresponding question in object_occlusion_w_intermediate is:

     "Given that for the question: Which object is thicker? Fire hydrant or tree trunk? The answer is: Tree trunk. Where can a child be hiding? Behind the fire hydrant or behind the tree? Answer the question directly."

2. Object manipulation (object_manipulation) - 399
   • Intermediate: 199, Final: 200

Data Fields

The data fields are as follows:

• question_id: A unique ID for the question.
• question: Question to be passed to the VLM.
• option: A list of options that the VLM can select from. For counting tasks, this field is left as null.
• answer: The expected answer, which must be either one of the strings in option (for non-counting tasks) or a number (for counting tasks).
• metadata:
  • viewpoint: Either "allo" (allocentric) or "ego" (egocentric).
  • format: Expected format of the answer, e.g. "bool" (boolean), "name", "num" (numeric), "pos" (position).
  • source_dataset: Currently, this is "coco_test2017" (MS COCO-2017) for our entire set of annotations.
  • source_img_id: Source image ID in MS COCO-2017.
  • skill: For reasoning tasks, a list of skills tested by the question, e.g. "count", "dist" (distance), "pos" (position), "shape", "size", "vis" (visual).

Dataset Preparation

This version of the dataset was prepared by combining the JSON annotations with the corresponding images from MS COCO-2017. The script used can be found at prepare_parquet.py, to be executed in the root of our GitHub repository.

Licensing Information

Please note that the images are subject to the Terms of Use of MS COCO-2017:

Images

The COCO Consortium does not own the copyright of the images. Use of the images must abide by the Flickr Terms of Use. The users of the images accept full responsibility for the use of the dataset, including but not limited to the use of any copies of copyrighted images that they may create from the dataset.

BibTeX

@article{zhang2025sphere,
  title={SPHERE: Unveiling Spatial Blind Spots in Vision-Language Models Through Hierarchical Evaluation},
  author={Zhang, Wenyu and Ng, Wei En and Ma, Lixin and Wang, Yuwen and Zhao, Jungqi and Koenecke, Allison and Li, Boyang and Wang, Lu},
  journal={arXiv},
  year={2025}
}
